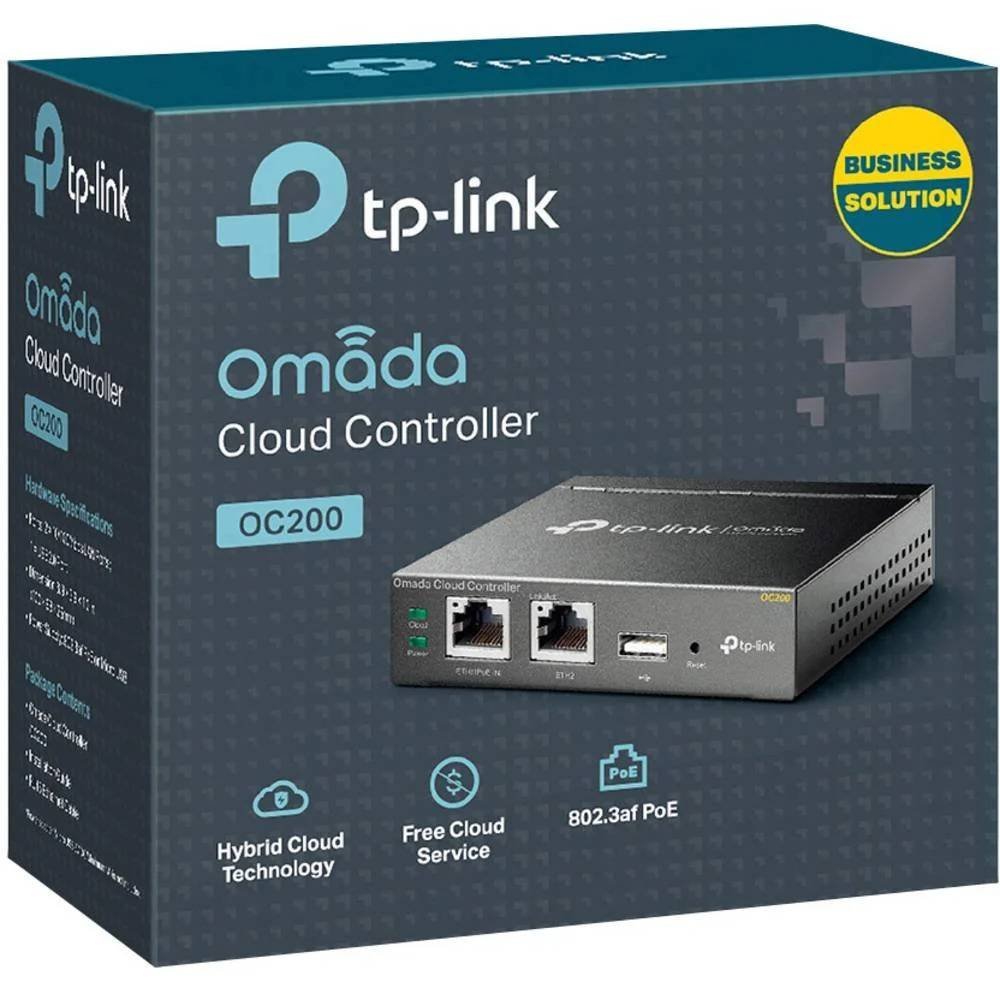

TP-LINK OC200 Omada-Cloud-Controller Wi-Fi access point controller

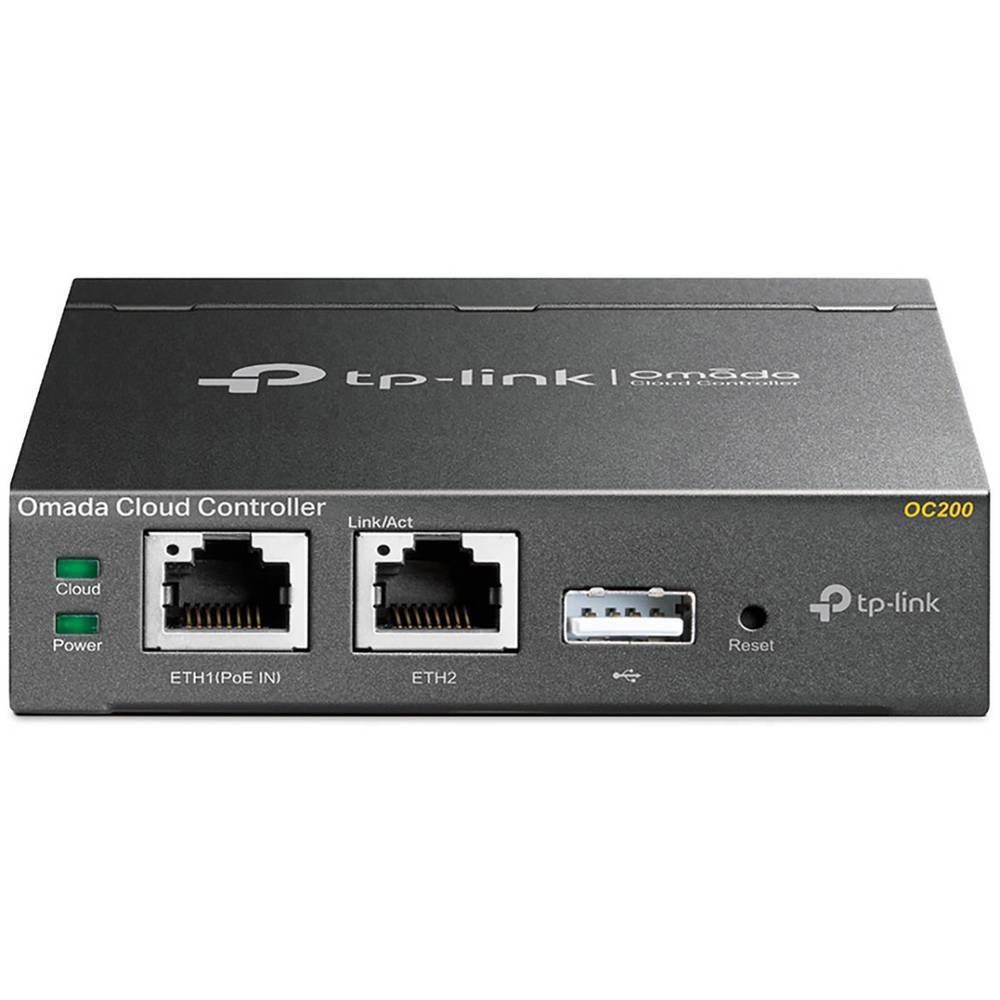

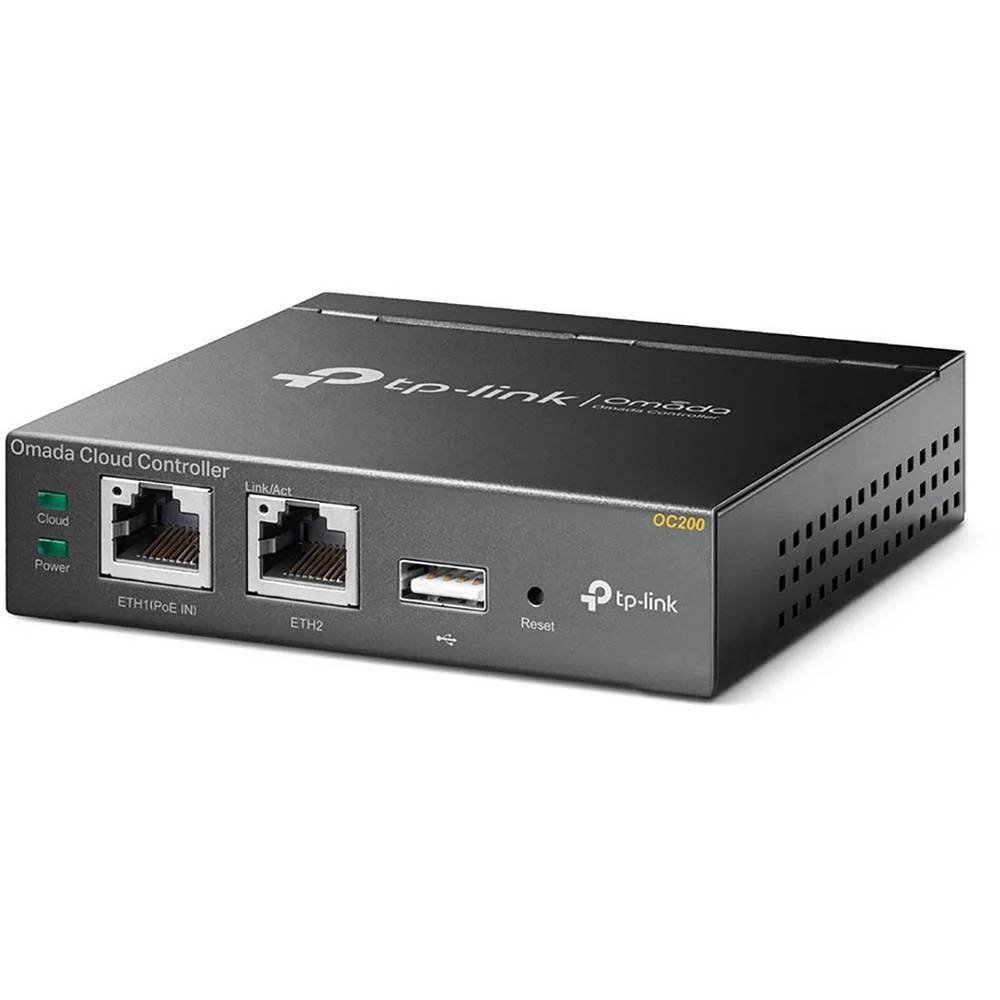

Omada Hardware Controller Centralized Management: Supports up to 100 Omada access points, 10 Omada routers, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs† Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime. On-Premises Management: Locally monitor and manage devices with the ultimate security and stability. Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports. Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation. Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution. Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance. Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance. HARDWARE FEATURES Interface • 2× 10/100 Mbps Ethernet Port • 1× USB 2.0 Port • 1× Micro USB Port Power Supply 802.3af/at PoE or Micro USB（DC 5V/Minimum 1A） Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm) Management Features Omada App Yes Centralized Management • 100 Omada access points • 10 Omada routers • A maximum of 20 Omada switches† • A maximum of 2 certain DeltaStream GPON OLTs† Note: Please refer to www.tp-link.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC200 †The number of supported Omada switches decreases by 5 for each DeltaStream GPON OLT added. Refer to https://www.omadanetworks.com/omada-sdn/product-list/#sp-gpon to find all the DeltaStream GPON OLTs that are supported by the controller. Cloud Access Yes L3 Management Yes Multi-site Management Yes Management Features • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration OTHERS Certification CE, FCC, RoHS Package Content • Omada Hardware Controller OC200 • Quick Installation Guide • Ethernet Cable System Requirements Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
